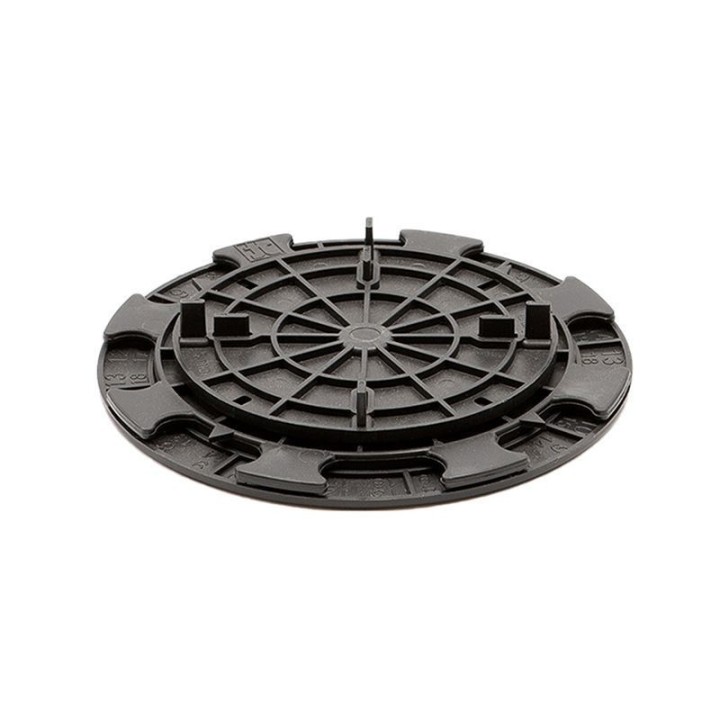

This pack combines in a single product the Jouplast ESSENTIEL 8/20 mm adjustable paving pedestal and the acoustic rubber pad that sits on its head. You order one line instead of two: the number of pads always matches your number of pedestals exactly, with nothing forgotten at the end of the layout.
This is the lowest height in the paving range. It slips under a door sill or onto an existing tiled terrace without any masonry work, making it the go-to product for renovation when the available build-up height is limited.

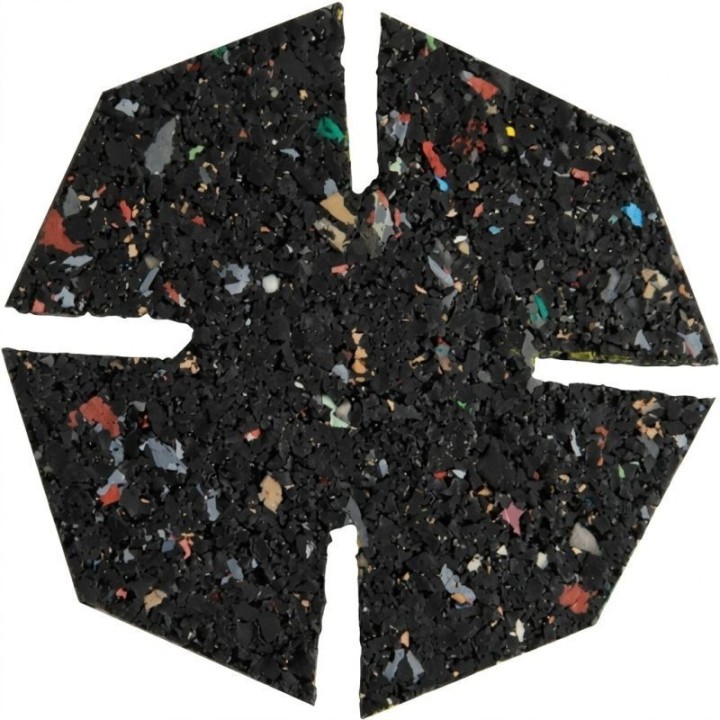

What the acoustic rubber pad changes
Laid directly on the pedestal head, a porcelain stoneware slab clatters underfoot and transmits vibration into the structure. The acoustic rubber pad sits between the head and the surface to decouple the two. It dampens impact noise, spreads the bearing under the corner of the slab and holds it in place during adjustment. It adds 3 mm to the finished height, to be included in the build-up calculation.
It is most useful on upper-floor terraces, on roof terraces and with large-format tiles, where clatter is most noticeable.
Precise adjustment with the adjustment ring, before laying the surface
The height is set by screwing or unscrewing the base, so you can prepare a perfectly level laying plane before installing the slabs. Setting out is done by hand, with no special tools.
Compatible with all your terrace surfaces
The pedestal takes concrete slabs, porcelain stoneware and 2 cm outdoor tiles, as well as duckboards, without joints or glue. The 3 mm spacer tabs built into the head ensure an even joint between each slab. The terrace stays ventilated, removable and accessible at all times.
How many do you need?
Allow 1 pedestal at each slab corner, i.e. 4 pedestals per slab in a straight layout. For formats from 60 x 60 cm, add a central pedestal by breaking off the spacer tabs. As the pack contains one pad per pedestal, the quantity ordered matches your pedestal count directly.
Technical specifications
| Pack contents | 1 adjustable pedestal 8/20 mm + 1 acoustic rubber pad |
|---|---|
| Adjustable height | 8 to 20 mm |
| Height above ground | 1 to 2 cm / less than 1 cm |
| Height added by the pad | 3 mm |
| Pedestal material | Polypropylene |
| Pad material | Recycled tires |
| Spacer thickness | 3 mm |
| Laying surface | Stabilized ground |
| Adjustment type | Manual |
| Load | Greater than 500 kg |
| Resistance | Resistant to acid and alkaline solutions, atmospheric agents and temperatures from -30°C to +60°C |
| Warranty | 10 years |
| Origin | Made in France |
| HS code | 39259010 |
- Brand
- Jouplast
- Reference
- PACKGOM-8-20
- EAN13
- 2000000001128
- Brand
- Jouplast
- Range
- ESSENTIEL
- Material
- Polypropylene (PP)
- Pedestal type
- Adjustable
- Terrain type
- Stabilized ground
- Type of use
- Concrete slab / Porcelain stoneware / Grating
- Adjustment type
- Adjustment ring
- Height
- 1 to 2 cm / less than 1 cm
- Spacer thickness
- 3 mm
- Temperature resistance
- -30 °C to +60 °C
- Supported load
- Greater than 500 kg
- Warranty
- 10 years
- Manufacturing
- French
- When to adjust
- Before laying the surface
- HS Code
- 39259010
Jouplast Adjustable Pedestal 8-20 mm + Rubber Pad
Work out your pedestals in 2 clicks
8/20 mm adjustable pack (ESSENTIEL) supplied with its acoustic rubber pad: 1 pedestal + 1 pad, for quiet installation with no quantity mistakes.
