Slab support plate for Jouplast Cleman pedestals. Appearance matters as much as strength in a successful terrace. The slab support plate delivers both: it allows clean, simple and quick finishes, while guaranteeing a stable surface.

The side tiles used on slab support plates and fixing kits must be at least 2 cm thick. The anti-slip insulation pad, placed on or under the plate as a cushion, is not mandatory but strongly recommended to stabilize the surface as well as possible.

Which pedestals are compatible with the slab support plate?

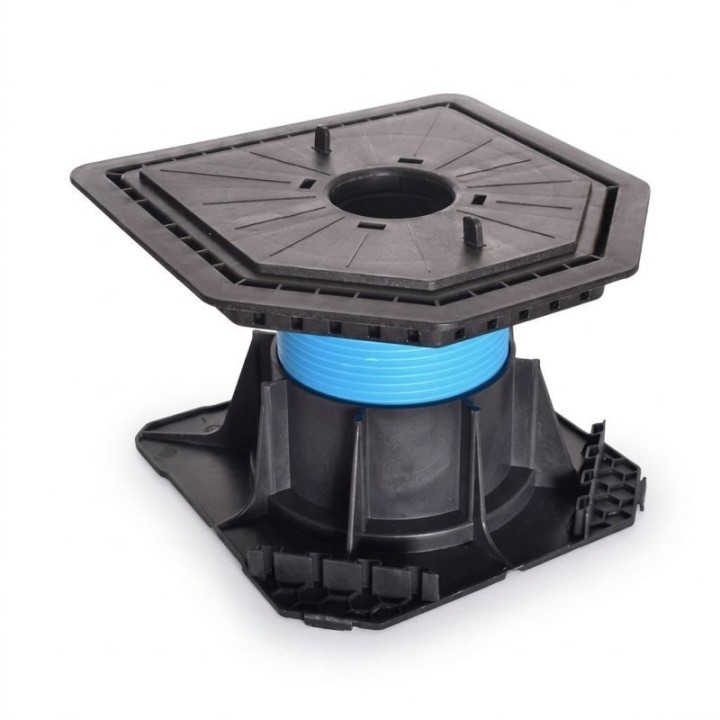

The slab support plate is compatible with all pedestals in the Cleman range, except the low models: 10 mm, 8/20 mm and 20/30 mm pedestals. It fits directly onto the pedestal head and adds a little height to the assembly.

Using the slab support plate for Cleman pedestals

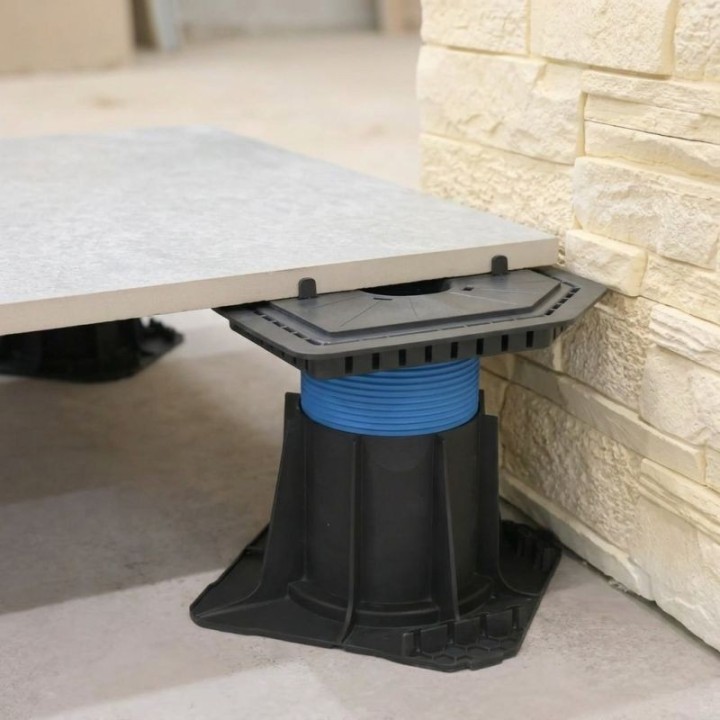

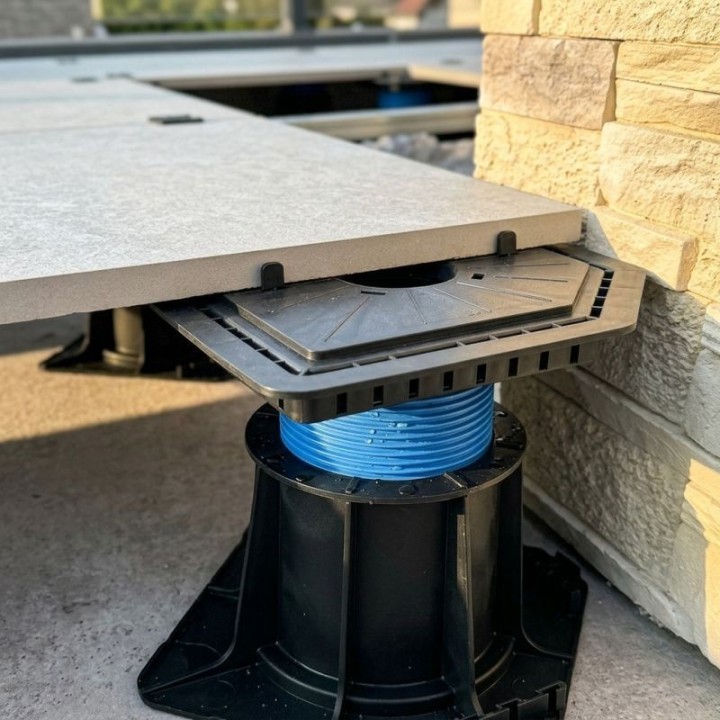

The slab support plate is installed on a Cleman pedestal fitted with 2 cladding supports. Installation against a facade becomes simple and accessible to everyone.

It allows 3 types of finish:

• Invisible finish;

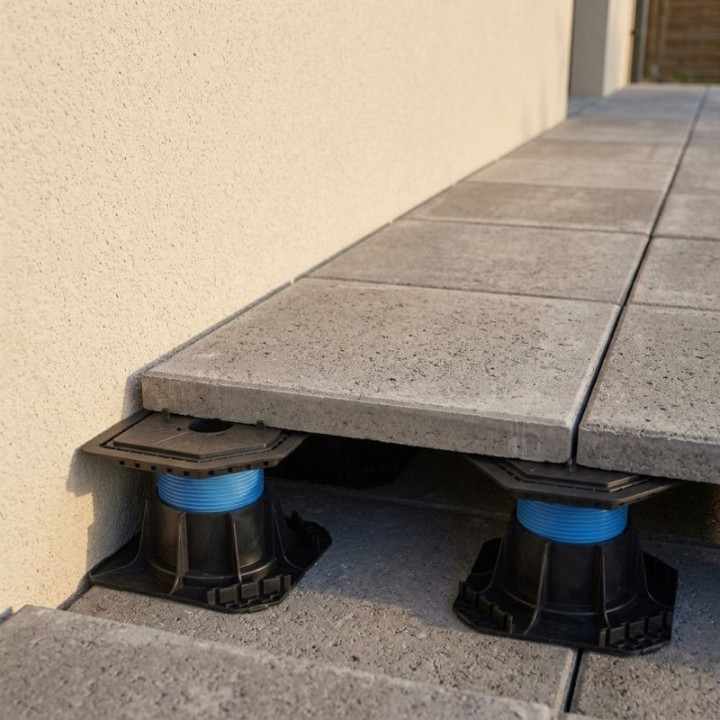

• Building steps;
• Finish with skirting.

Choose the finish that best suits your project and blends with your outdoor decor.

Advantages of the Cleman slab support plate

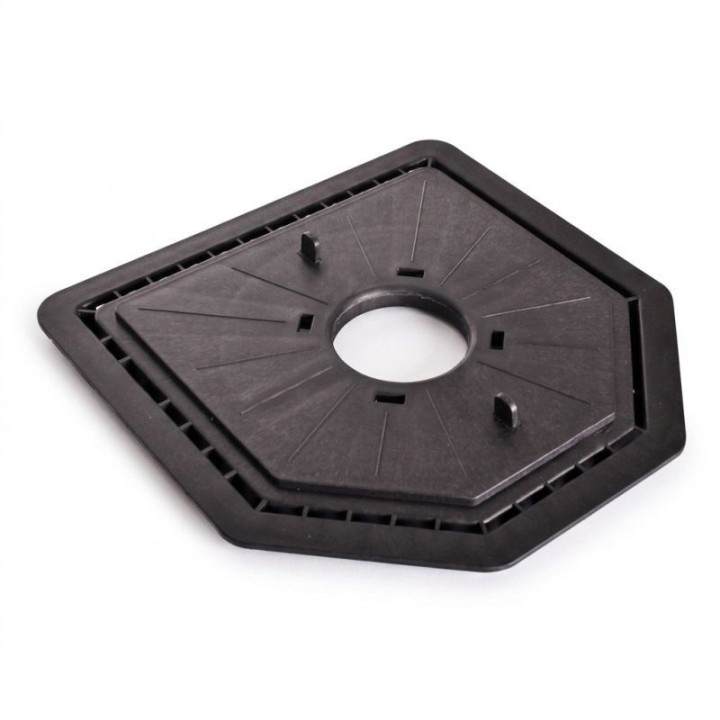

• With 5 faces and 4 break-off spacer tabs of 4 mm, it provides optimal support for the slab, including for 45° cuts. Its shape is particularly suited to installation at the edge of the terrace or against a wall.
• Compatible with Cleman paving pedestals and self-leveling paving pedestals (except the 28/40 paving pedestal), it also accepts small tiles (20 cm). Enough to bring all your terrace projects to life.

Technical features of the slab support plate for Cleman pedestals

• Dimensions: 218 mm x 218 mm, for great stability of the slab surface.
• Withstands temperatures from -30 °C to +60 °C, frost and UV, without deterioration.
• Increases the pedestal height by 10 mm.
