100 cm outdoor stair step for wood or slabs – MODULESCA Jouplast. The modular outdoor staircase revolutionizes the way outdoor stairs are built: MODULESCA by Jouplast allows quick, durable installation. Made up of several modules, the Modulesca staircase is assembled piece by piece and lets you create all types of stairs. Whether straight or quarter-turn, every design is possible with MODULESCA by Jouplast stair steps.

Using the 93 cm outdoor stair step

No need to take on major works any more: with the MODULESCA stair modules, building your staircase is child's play! Allow half a day to install an outdoor staircase, after preparing your ground properly.

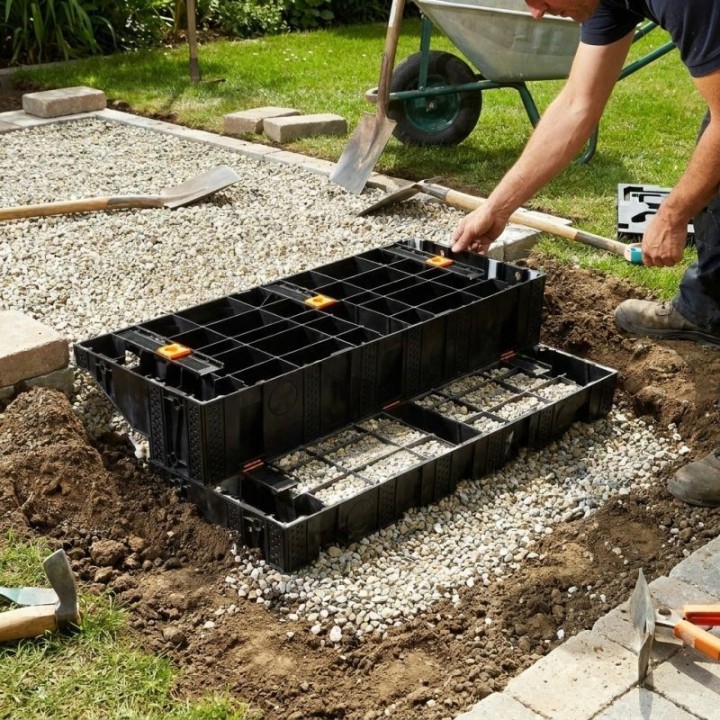

Ground preparation in 4 steps

1. Mark out the location of the staircase.
2. Excavate the area to a depth of 10 cm.
3. Dig to house the first element of the structure: 1 m wide and 20 cm deep.
4. Line the bottom with gravel (0-20), compact it, then place the module on it.

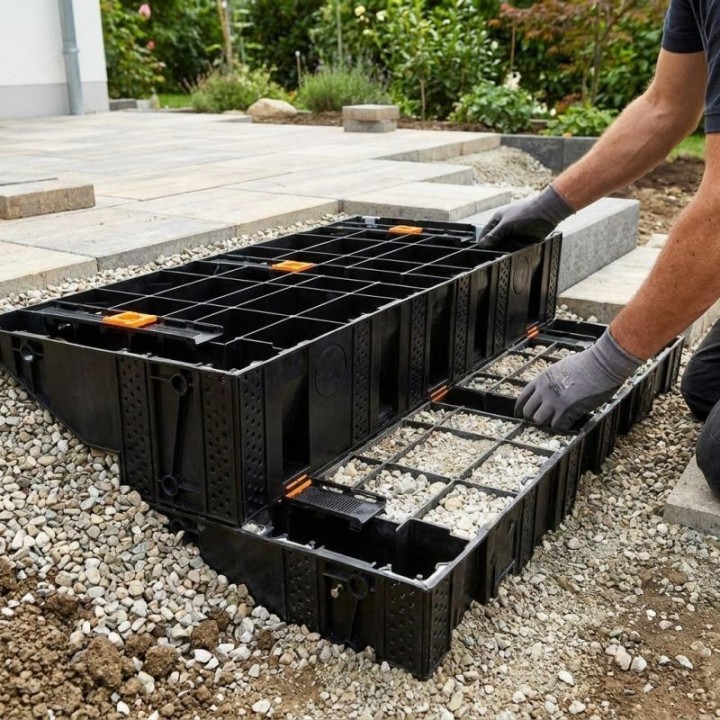

Assembling the modules

• Use a spirit level to check that the installation is straight.
• Fill the module with gravel to hold it firmly in place, without blocking the slides.
• Add the next module and fit the lugs into the nuts.
• Slide the module against the bank, then fix it with 3 screws.

Cladding the steps, in wood or slabs

• Wooden outdoor stairs: lay and fix the joists, then screw the wooden boards onto the joists, leaving a gap of 3 to 5 mm between the boards.

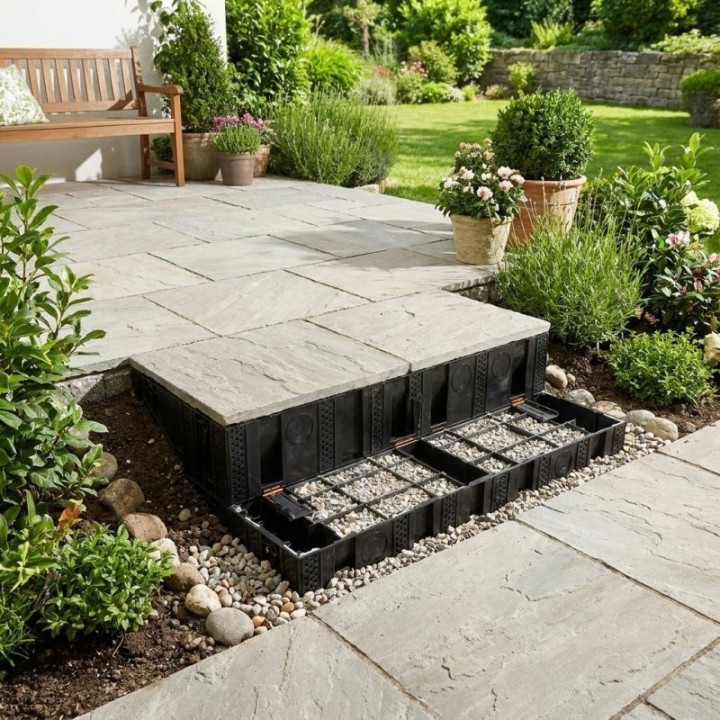

• Slab outdoor stairs: pour concrete up to the brim, glue the slabs onto the treads and risers, then wait 48 h for it to dry.

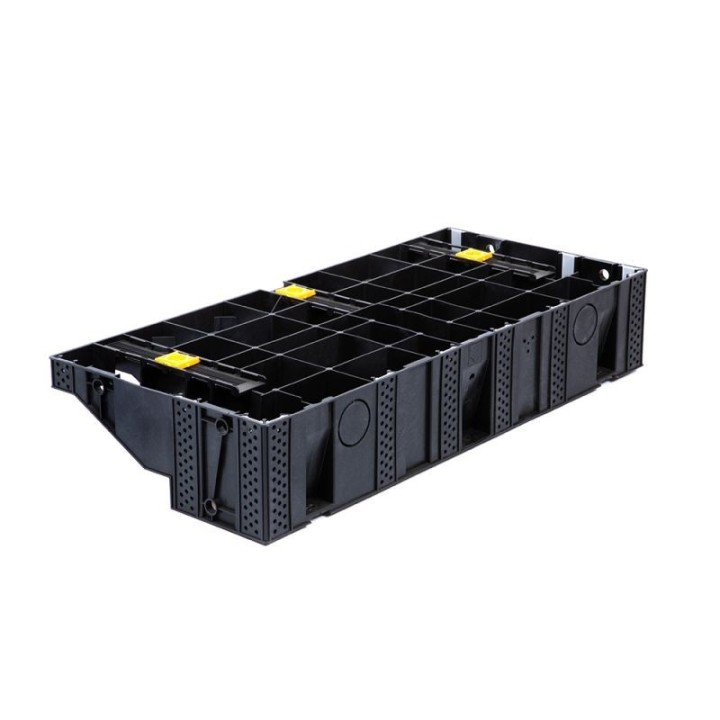

Features of the 93 cm stair step

• Length 93.4 cm — Width 42.4 cm — Height 17 cm.
• Weight: 5.3 kg — Fill volume: 41 liters.
• Supports up to 6,000 kg of load without deterioration.
• Withstands temperature variations from -20 °C to +70 °C.
• Made of glass-fiber reinforced polypropylene, fully recyclable.

Assembly uses a notch and slide system in reinforced synthetic material. The modules are locked with 3 screws (6X40 TX25), supplied with the module.

To widen your Modulesca outdoor staircase, add the 20 cm stair module. The 20 cm modules can be combined to widen your staircase in 20 cm increments.
