YEED Self-Leveling Pedestal 50-65 mm for Paving and Tiled Terraces - Origin images

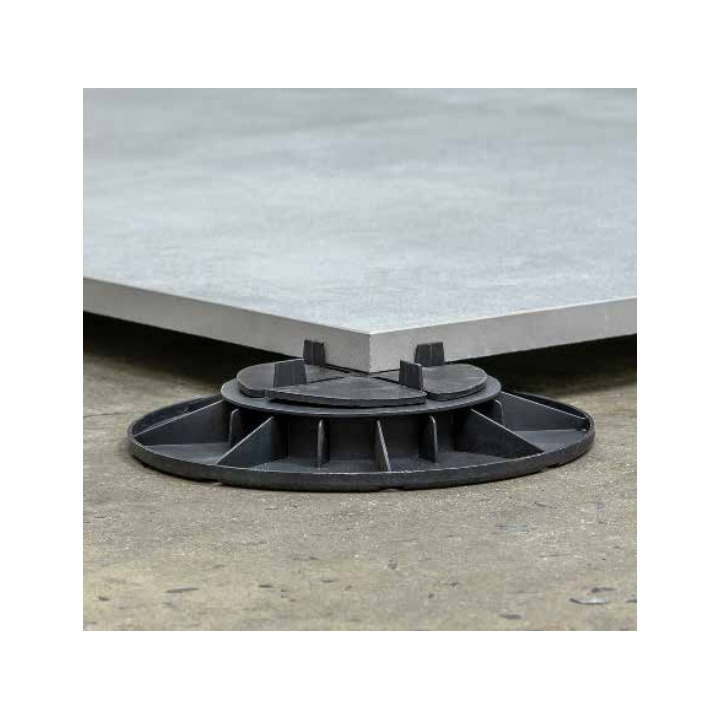

YEED 50/65 mm self-leveling pedestal: the Origin 25/40 mm adjustable pedestal combined with the YEED self-leveling disc clipped under the base. The assembly automatically compensates for up to 5% slope over 1 m and covers a height of 50 to 65 mm (the disc adds 25 mm to the 25/40 pedestal). Details of the pedestal and then the disc are given below.

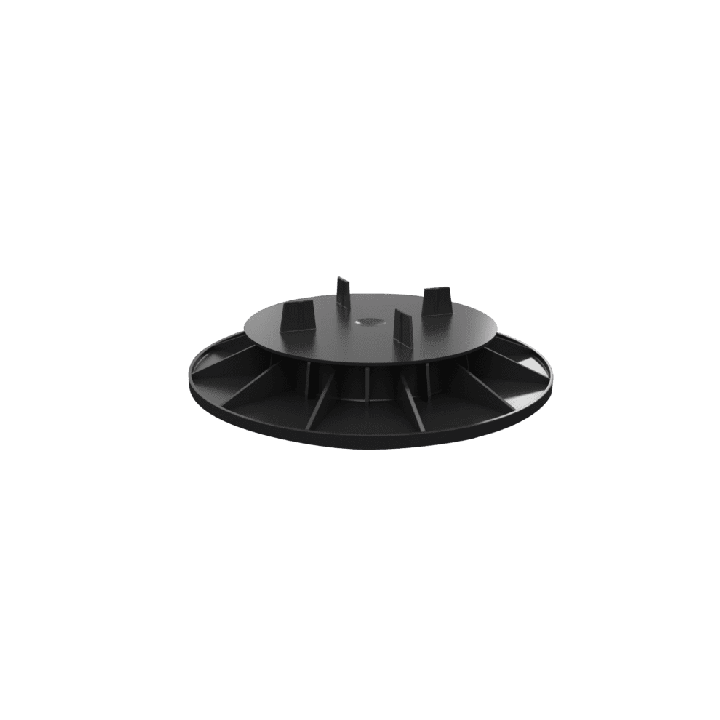

YEED Origin 25/40 mm adjustable pedestal for building paving or tiled terraces (porcelain stoneware, concrete, stone, duckboards) for pedestrian use. Adjustable to the nearest millimeter from 25 to 40 mm using the red adjustment ring.
Millimeter adjustment, no tools needed
The adjustment ring sets the height from 25 to 40 mm to the nearest millimeter, with no tools. The head, fitted with 4 break-off lugs, takes square or rectangular slabs with a precise 3 mm spacing (lugs can be broken off for edge installation). The 200 mm base is designed for rainwater drainage.
Surface compatibility
Compatible with most paving surfaces at least 2 cm thick: 20 mm porcelain stoneware, 50 mm concrete or reconstituted stone slabs, rectified natural stone. Resistant to UV, frost, atmospheric agents and acid and alkaline products (installation around pools or spas).
Key features
- Millimeter adjustment from 25 to 40 mm with the red ring
- Load capacity greater than 1 ton
- 4 break-off lugs, precise 3 mm joint
- Draining base, installation without glue or joints
- Recycled polypropylene, compliant with DTU 43.1 — Made in France, 10-year warranty
Technical specifications
| Pedestal type | Adjustable |
|---|---|
| Height | 25/40 mm (25 to 40 mm) |
| Adjustment | Adjustment ring, to the nearest millimeter |
| Base diameter | 200 mm |
| Head diameter | 120 mm |
| Spacer tabs | height 15 mm / thickness 3 mm, break-off |
| Material | Recycled and recyclable polypropylene |
| Color | Black and red |
| Load capacity | More than 1 ton |
| Resistance | -40°C to +60°C, UV, frost, acids and alkalis |
| Compliance | DTU 43.1 |
| Use | Pedestrian, outdoor |
| Weight | 197 g |
| Warranty | 10 years |
| Origin | Made in France |

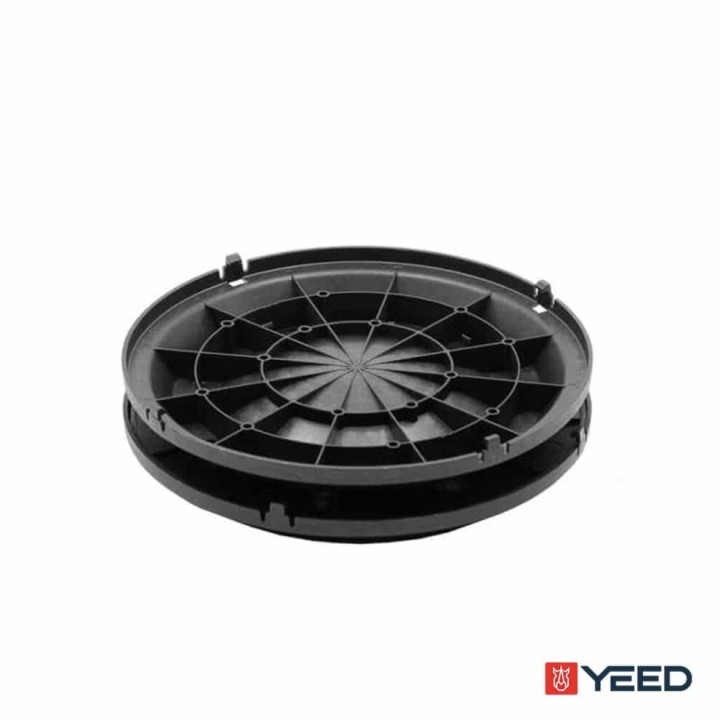

The YEED self-leveling base clips quickly under the base of Origin range pedestals. Once fitted, the pedestal becomes self-leveling and automatically compensates for up to 5% slope over 1 meter.
Laying a floating floor on an unlevel substrate
The self-leveling disc lets you install a floating floor (slabs, wood or composite) on ground that is not level, without tedious pedestal-by-pedestal adjustment. It is compatible with Origin paving, wood and composite pedestals from 25/40 mm.
Key features
- Compensates for up to 5% slope over 1 m
- Quick clip-on fitting under the base
- Compatible with Origin paving, wood and composite pedestals (from 25/40 mm)
- Recycled polypropylene — Made in France
Technical specifications
| Function | Makes the pedestal self-leveling |
|---|---|
| Compensation | Up to 5% slope over 1 m |
| Added height | +25 mm |
| Material | Recycled polypropylene |
| Color | Black |
| Weight | 220 g |
| Warranty | 10 years |
| Origin | Made in France |
Tip: essential as soon as the substrate is sloping or uneven — it saves a considerable amount of adjustment time.
- Brand
- Yeed
- Reference
- YEE-AN-110202
- EAN13
- 2000000001708
- Brand
- YEED
- Range
- Origin
- Material
- Polypropylene (PP)
- Pedestal type
- Adjustable self-leveling
- Terrain type
- Paving terrace
- Type of use
- Outdoor pedestrian
- Color
- Black and red
- Adjustment type
- Adjustment ring + self-leveling disc
- Height
- 50/65 mm
- Spacer thickness
- 3 mm
- Temperature resistance
- -40°C to +60°C
- DTU compliance
- DTU 43.1
- Supported load
- More than 1 ton
- Warranty
- 10 years
- Manufacturing
- France
YEED Self-Leveling Pedestal 50-65 mm for Paving and Tiled Terraces - Origin
Work out your pedestals in 2 clicks
YEED 50/65 mm self-leveling pedestal: Origin 25/40 adjustable pedestal + clip-on self-leveling disc, compensating up to 5% slope over 1 m. Load over 1 ton, DTU 43.1 compliant.
